jerry@srdic.cnIn the ever-evolving world of wireless communication and radio frequency (RF) technologies, Analog Devices Inc. (ADI) continues to lead the way with innovative solutions that push the boundaries of performance and efficiency. Today, we're excited to bring you a closer look at the AD607ARS-REEL, a 3V low-power receiver IF (Intermediate Frequency) subsystem designed for operation in demanding applications such as GSM, CDMA, TDMA, and TETRA receivers.
The AD607ARS-REEL: A Complete Receiver-on-a-Chip

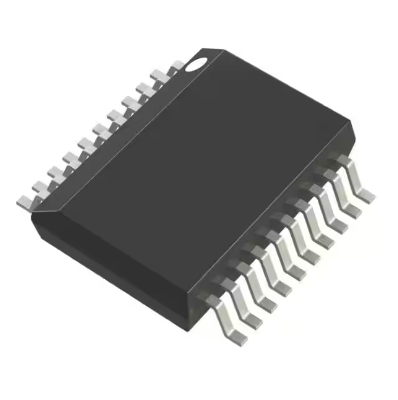

The AD607ARS-REEL is a highly integrated receiver IF subsystem that combines multiple essential components into a single 20-SSOP (Surface-Mount Small Outline Package) package, measuring just 0.209" in length and 5.30mm in width. This compact form factor makes it an ideal choice for space-constrained designs, such as portable devices and battery-powered communication receivers.
At the heart of the AD607ARS-REEL lies its advanced Monoceiver® architecture, which integrates a mixer, IF amplifiers, I and Q demodulators, a phase-locked quadrature oscillator, and a biasing system with an external power-down feature. This integration significantly simplifies system design, reduces component count, and enhances overall reliability.
Key Features and Specifications
Mixer Performance
The mixer section of the AD607ARS-REEL boasts impressive performance specifications, including a nominal 1 dB compression point of –15 dBm and an input third-order intercept point (IP3) of –8 dBm. This high intercept point ensures minimal distortion even at high input power levels, making it suitable for use in high-dynamic-range applications.
The mixer also includes a local oscillator (LO) preamplifier, which reduces the required LO drive level to –16 dBm. This feature simplifies LO design and improves overall system efficiency.
Linear IF Amplifiers and Gain Control
The AD607ARS-REEL incorporates linear IF amplifiers that provide stable gain across a wide frequency range from 400 kHz to 12 MHz. This linear-in-dB gain control feature allows for precise adjustment of the receiver's sensitivity, making it suitable for a wide range of applications.
Manual gain control (MGC) is also supported, enabling the AD607ARS-REEL to accept an external gain-control voltage input from an automatic gain control (AGC) detector or digital-to-analog converter (DAC). This feature further enhances the flexibility of the subsystem and enables it to adapt to varying signal conditions.
I and Q Demodulators
The I and Q demodulators of the AD607ARS-REEL provide in-phase and quadrature baseband outputs, which interface seamlessly with Analog Devices' AD7013 and AD7015 baseband converters. This integration simplifies system design and improves overall performance by reducing the number of interconnections and potential noise sources.
The demodulators can demodulate IF signals ranging from 400 kHz to 12 MHz, making the AD607ARS-REEL suitable for use in a wide range of communication protocols. Additionally, the demodulators can also demodulate AM, CW, and SSB signals, further expanding its versatility.
Low Power Consumption
Despite its impressive performance, the AD607ARS-REEL is designed for low power consumption, drawing just 25 mW at 3V. This low power consumption is achieved through the use of advanced CMOS technology and efficient circuit design. The subsystem also features a CMOS-compatible power-down mode, which further reduces power consumption when the receiver is not in use.
Applications and Use Cases
The AD607ARS-REEL is well-suited for a wide range of communication applications, including GSM, CDMA, TDMA, and TETRA receivers. Its high performance and low power consumption make it an ideal choice for portable devices and battery-powered communication receivers.
In addition to these traditional applications, the AD607ARS-REEL can also be used in satellite terminals and other high-frequency communication systems. Its ability to demodulate AM, CW, and SSB signals further expands its use cases, making it a versatile tool for engineers working on a variety of communication projects.
Conclusion
The AD607ARS-REEL from Analog Devices Inc. is a high-performance receiver IF subsystem that combines multiple essential components into a single compact package. Its advanced Monoceiver® architecture, impressive mixer performance, linear IF amplifiers, and low power consumption make it an ideal choice for a wide range of communication applications.
Whether you're designing a portable GSM receiver, a battery-powered TETRA terminal, or a high-frequency communication system, the AD607ARS-REEL offers the performance and versatility you need to succeed. With its compact form factor and seamless integration with Analog Devices' baseband converters, the AD607ARS-REEL is a must-have component for any engineer working on the cutting edge of wireless communication technology.
In conclusion, the AD607ARS-REEL is a testament to Analog Devices' commitment to innovation and excellence in the field of RF and communication technologies. Its impressive specifications and wide range of applications make it a valuable addition to any engineer's toolbox. If you're looking for a high-performance, low-power receiver IF subsystem, look no further than the AD607ARS-REEL from Analog Devices Inc.
